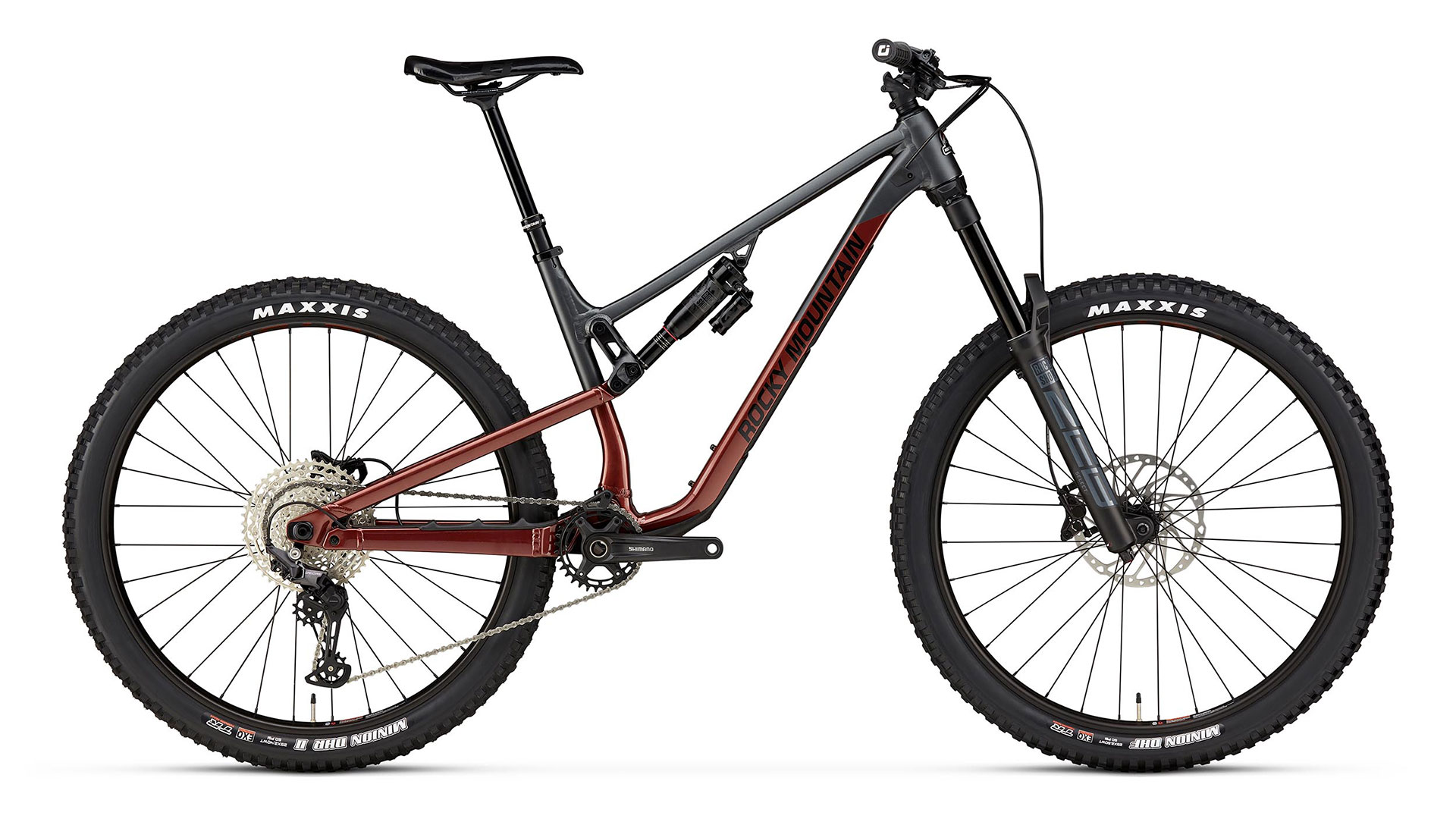

RED/GREY
SIZE:SM[27.5"] / MD[29"] / LG[29"]
¥598,400(税込)★
EWSに参戦するロッキーマウンテンチームのフィードバックにより生まれたAltitude。エンデューロや下りをメインとしたトレイルライドを存分に楽しんでください。より長いリーチと寝かせたヘッドアングルの進化したジオメトリー、スタイリッシュで剛性を高めるフレームチューブの造形、大型のドリンクボトルを装備可能なスローピングフレーム、新採用のアジャスタブルチェーンステーとリヤ周りの剛性と耐久性を向上させるチェーンステーピボットのデュアルベアリング化など、全てが新たなレベルに引き上げられています。ホイールサイズはライダーの体格に合わせ、Sサイズに27.5”、M・Lサイズに29”インチホイールを採用しています。
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 160mm Travel. FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset |
| Front Travel | 170 |
| Shock | RockShox Super Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
| Rear Travel | 160 |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano MT4120 4 Piston | Resin Pads | F:Shimano RT64 203mm | R:Shimano RT64 180mm |
| Shifters | Shimano Deore 12spd |
| Rear Derailleur | Shimano Deore 12spd |
| Cranks & Chainring | Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length |
| Bottom Bracket | Shimano SM-BBMT500 |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | Novatec D462 Sealed Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
| Tires | F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
| Seatpost | Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle | WTB Volt 142 |
| Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
| Notes | 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 580 | 611 | 640 |
| Head Tube Angle (deg) | 64.4 | 64.4 | 64.4 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 75.4 | 75.4 | 75.4 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 428 - 439 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 20 | 34 | 34 |
| Reach (mm) | 423 | 449 | 474 |
| Stack (mm) | 601 | 624 | 638 |
| Standover Height (mm) | 767 | 813 | 813 |
| Wheelbase (mm) | 1172 | 1218 | 1249 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 580 | 611 | 640 |
| Head Tube Angle (deg) | 64.7 | 64.7 | 64.7 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 75.7 | 75.7 | 75.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 428 - 439 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 18 | 32 | 32 |
| Reach (mm) | 425 | 451 | 476 |
| Stack (mm) | 599 | 623 | 637 |
| Standover Height (mm) | 769 | 814 | 814 |
| Wheelbase (mm) | 1172 | 1218 | 1249 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 579 | 610 | 639 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 428 - 439 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 15 | 30 | 30 |
| Reach (mm) | 428 | 453 | 478 |
| Stack (mm) | 598 | 622 | 635 |
| Standover Height (mm) | 770 | 815 | 815 |
| Wheelbase (mm) | 1171 | 1217 | 1249 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 579 | 610 | 639 |
| Head Tube Angle (deg) | 64.8 | 64.8 | 64.8 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 75.8 | 75.8 | 75.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 427 - 438 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 15 | 29 | 30 |
| Reach (mm) | 428 | 453 | 478 |
| Stack (mm) | 598 | 622 | 635 |
| Standover Height (mm) | 770 | 815 | 815 |
| Wheelbase (mm) | 1171 | 1217 | 1249 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 579 | 610 | 638 |
| Head Tube Angle (deg) | 65 | 65 | 65 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 76 | 76 | 76 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 427 - 438 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 12 | 27 | 27 |
| Reach (mm) | 430 | 455 | 480 |
| Stack (mm) | 596 | 620 | 634 |
| Standover Height (mm) | 771 | 816 | 816 |
| Wheelbase (mm) | 1171 | 1217 | 1249 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 578 | 609 | 638 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 427 - 438 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 9 | 25 | 25 |
| Reach (mm) | 432 | 457 | 482 |
| Stack (mm) | 595 | 619 | 632 |
| Standover Height (mm) | 772 | 817 | 817 |
| Wheelbase (mm) | 1170 | 1217 | 1248 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 578 | 609 | 638 |
| Head Tube Angle (deg) | 65.2 | 65.2 | 65.2 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 427 - 438 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 9 | 25 | 25 |
| Reach (mm) | 432 | 457 | 482 |
| Stack (mm) | 595 | 619 | 632 |
| Standover Height (mm) | 772 | 817 | 817 |
| Wheelbase (mm) | 1170 | 1217 | 1248 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 578 | 609 | 637 |
| Head Tube Angle (deg) | 65.4 | 65.4 | 65.4 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 76.4 | 76.4 | 76.4 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 426 - 437 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 7 | 22 | 22 |
| Reach (mm) | 434 | 459 | 484 |
| Stack (mm) | 593 | 617 | 631 |
| Standover Height (mm) | 773 | 818 | 818 |
| Wheelbase (mm) | 1170 | 1217 | 1248 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [27.5"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 577 | 608 | 637 |
| Head Tube Angle (deg) | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 100 | 95 | 110 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 425 - 436 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 4 | 19 | 19 |
| Reach (mm) | 437 | 461 | 486 |
| Stack (mm) | 591 | 616 | 629 |
| Standover Height (mm) | 774 | 819 | 819 |
| Wheelbase (mm) | 1169 | 1216 | 1248 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
Standover height is measured 200 mm in front of the bottom bracket.
