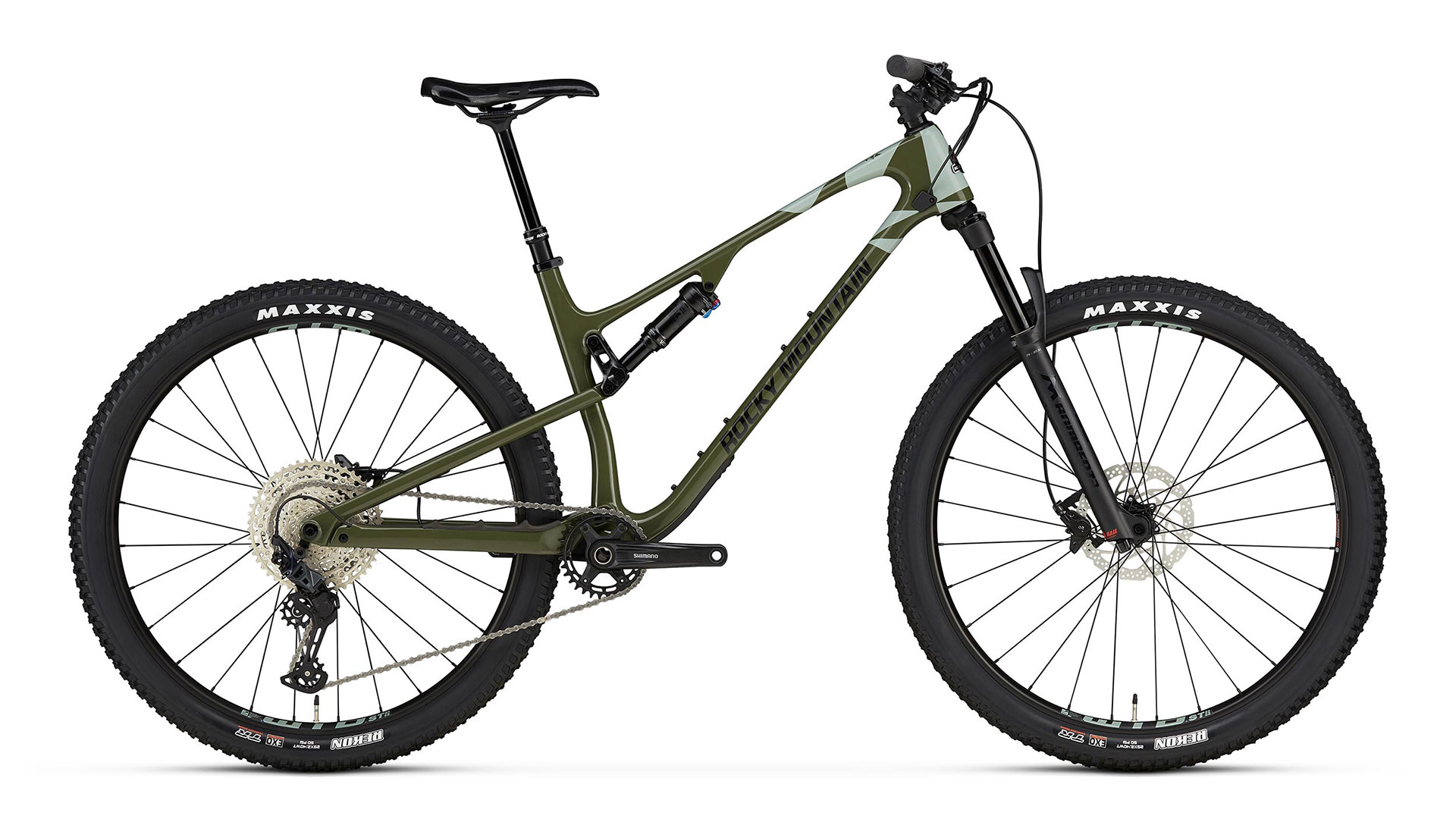

Element Carbon 30

SIZE:SM[29"] / MD[29"] / LG[29"]

¥645,700(税込)★

Elementは軽量で優れたクロスカントリーでのクライミング性能と、テクニカルセクションでの正確さ、その2つのスイートスポットを目指して作られました。両方の性能は最高であり、それ以上のものでもあります。新しいレベルのクライミング性能は、誰かに追いつけ追い越せと言わんばかりの快感をもたらします。アグレッシブなシートとヘッドチューブのアングルが、上りの操作性と下りの安定性を高め、タイトなシングルトラックや激しい下り坂で驚くほどの自信をあたえます。軽さ、剛性感、速さ、スムーズさ、正確さ、あなたにとって必要な全ての要素が揃っています。

SPECIFICATIONS

Frame	SMOOTHWALL™ Carbon \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing \| RIDE-4™ Adjustable Geometry + Suspension Rate \| 120mm Travel \| SMOOTHWALL™ Carbon Rear Triangle
Fork	Marzocchi Z2 Float EVOL Rail 130mm \| 44mm Offset
Front Travel	130
Shock	Fox Float DPS Performance \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| All Sizes = 190x45mm \| Size-Specific tune in FAQ
Rear Travel	120
Headset	FSA Orbit NO.57E \| Sealed 36°x45° Bearings \| 30.2mm x 41mm x 7.1mm Upper \| 40mm x 51.8mm x 7.5mm Lower \| 1.5" Crown Race
Stem	Rocky Mountain 31.8 XC \| 5° Rise \| All Sizes = 50mm
Handlebar	Rocky Mountain AM \| XS = 760mm \| SM - XL = 780mm Width \| 25mm Rise \| 9° Backsweep \| 5° Upsweep \| 31.8 Clamp
Grips	Rocky Mountain Lock On Light
Brakes	Shimano MT4100 2 Piston \| Resin Pads \| F:Shimano RT30 180mm \| R:Shimano RT30 180mm
Shifters	Shimano SLX
Rear Derailleur	Shimano SLX
Cranks & Chainring	Shimano Deore \| 32T \| 24mm Spindle \| 170mm Crank Length
Bottom Bracket	Shimano SM-BBMT500
Cassette	Shimano Deore 10-51T 12spd
Chain	Shimano M6100
Front Hub	Shimano MT410 \| 15mm Boost
Rear Hub	Shimano MT410 Boost 148mm
Spokes	2.0 Stainless
Rims	WTB ST Light i27 TCS 2.0 Tubeless \| 28H \| Tubeless Ready - Tape / Valves Incl
Tires	F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready
Seatpost	Rocky Mountain Toonie Drop Composite 30.9mm \| XS - SM = 125mm \| MD = 150mm \| LG - XL = 170mm
Saddle	WTB Volt 142
Weight	This information isn't available yet. We will update the weight of this model as soon as possible.
Notes	商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。

GEOMETRY

RIDE-4 POSITION

POS.1 Slack
POS.2
POS.3
POS.4 Steep

RIDE-4とは？

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	577	605	632
Head Tube Angle (deg)	65	65	65
Head Tube Length (mm)	105	115	125
Seat Tube Angle (deg)	76	76	76
Seat Tube Length (mm)	380	420	445
Rear Centre (mm)	436	436	436
Bottom Bracket Drop (mm)	47	47	47
Reach (mm)	425	450	475
Stack (mm)	606	615	624
Standover Height (mm)	810	808	806
Wheelbase (mm)	1173	1202	1231
Sizing & Fit (身長 cm)	155~ 167.5	167.5~ 177.5	175~ 188

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	577	604	631
Head Tube Angle (deg)	65.2	65.2	65.2
Head Tube Length (mm)	105	115	125
Seat Tube Angle (deg)	76.2	76.2	76.2
Seat Tube Length (mm)	380	420	445
Rear Centre (mm)	435	435	435
Bottom Bracket Drop (mm)	43	43	43
Reach (mm)	427	452	477
Stack (mm)	607	616	625
Standover Height (mm)	811	809	807
Wheelbase (mm)	1173	1202	1231
Sizing & Fit (身長 cm)	155~ 167.5	167.5~ 177.5	175~ 188

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	576	603	631
Head Tube Angle (deg)	65.5	65.5	65.5
Head Tube Length (mm)	105	115	125
Seat Tube Angle (deg)	76.5	76.5	76.5
Seat Tube Length (mm)	380	420	445
Rear Centre (mm)	435	435	435
Bottom Bracket Drop (mm)	40	40	40
Reach (mm)	430	455	480
Stack (mm)	609	618	627
Standover Height (mm)	812	810	809
Wheelbase (mm)	1173	1202	1231
Sizing & Fit (身長 cm)	155~ 167.5	167.5~ 177.5	175~ 188

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	575	603	630
Head Tube Angle (deg)	65.8	65.8	65.8
Head Tube Length (mm)	105	115	125
Seat Tube Angle (deg)	76.8	76.8	76.8
Seat Tube Length (mm)	380	420	445
Rear Centre (mm)	435	435	435
Bottom Bracket Drop (mm)	36	36	36
Reach (mm)	433	458	483
Stack (mm)	610	619	628
Standover Height (mm)	813	811	810
Wheelbase (mm)	1173	1202	1231
Sizing & Fit (身長 cm)	155~ 167.5	167.5~ 177.5	175~ 188

Standover height is measured 200 mm in front of the bottom bracket.
