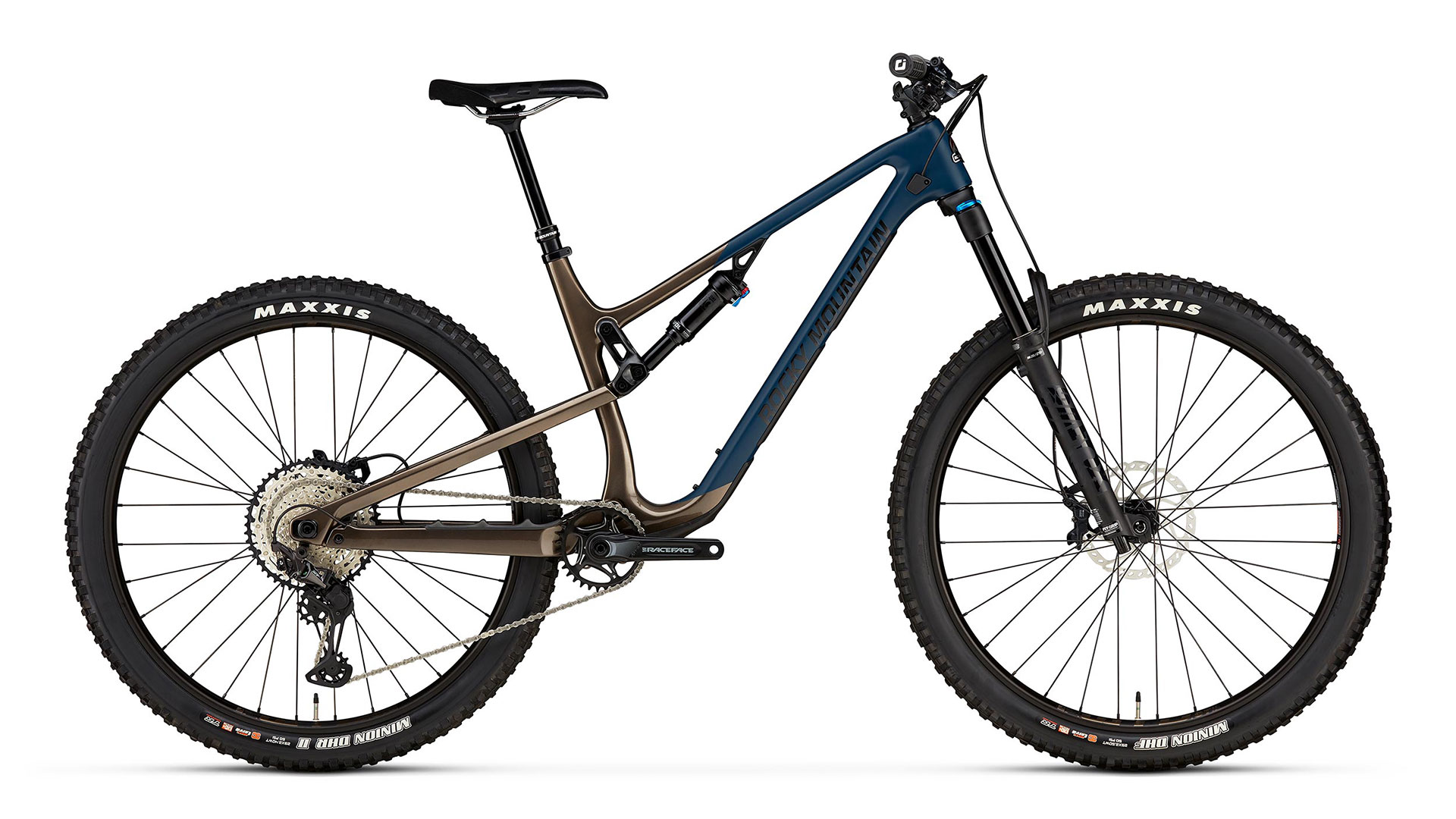

BROWN/BLUE

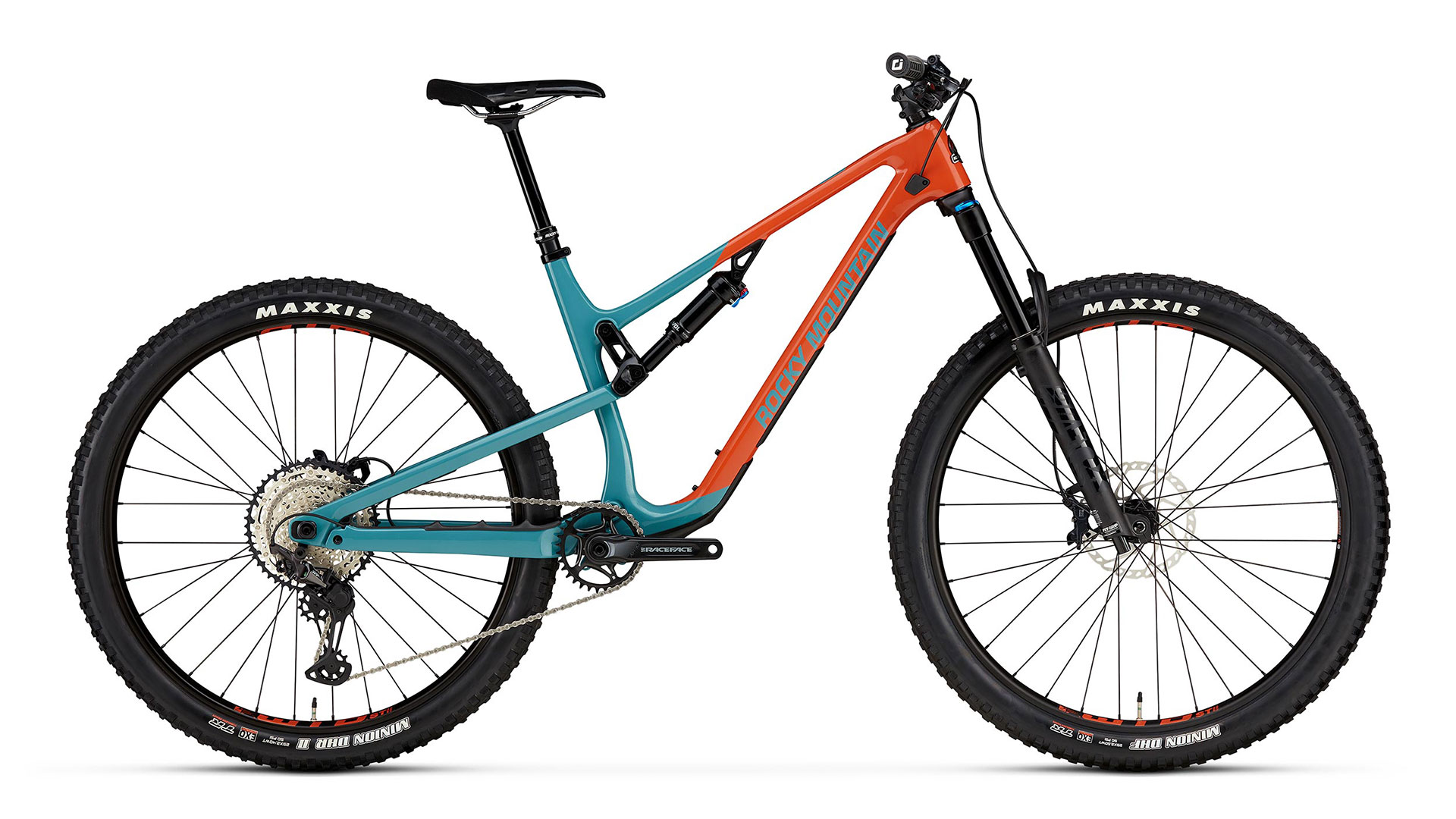

BLUE/ORANGE
SIZE:SM[29"] / MD[29"] / LG[29"]
¥821,700(税込)★
上りと下りの性能バランスに優れた、最も汎用性のあるトレイルバイクです。フロント150mm、リア140mmトラベルのサスペンションがどんなトレイルでもご機嫌にさせます。より長いリーチと寝かせたヘッドアングルの進化したジオメトリー、スタイリッシュで剛性を高めるフレームチューブの造形、大型のドリンクボトルを装備可能なスローピングフレーム、新採用のアジャスタブルチェーンステーとリヤ周りの剛性と耐久性を向上させるチェーンステーピボットのデュアルベアリング化、リヤショックと合わせて変更することでAltitudeへのコンバートを可能とするモデュラーショックマウントなど、全てが新たなレベルに引き上げられています。エピックライドやシングルトラックを存分に楽しんでください。
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 36 Float EVOL GRIP Performance Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Front Travel | 150 |
| Shock | Fox Float DPS Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Rear Travel | 140 |
| Headset | FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano SLX Trail 4 Piston | Metal Pads | F:Shimano RT66 180mm | R:Shimano RT66 180mm |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cranks & Chainring | Race Face Aeffect Cinch | 32T Steel | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM - XL = 170mm |
| Bottom Bracket | Shimano SM-BBMT500 |
| Cassette | Shimano SLX 10-51T |
| Chain | Shimano M6100 |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Spokes | DT Swiss Champion 2.0 |
| Rims | WTB ST Light i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
| Tires | F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
| Seatpost | Rocky Mountain Toonie Drop Alloy 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle | WTB Volt Race 142 |
| Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
| Notes | 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。 |

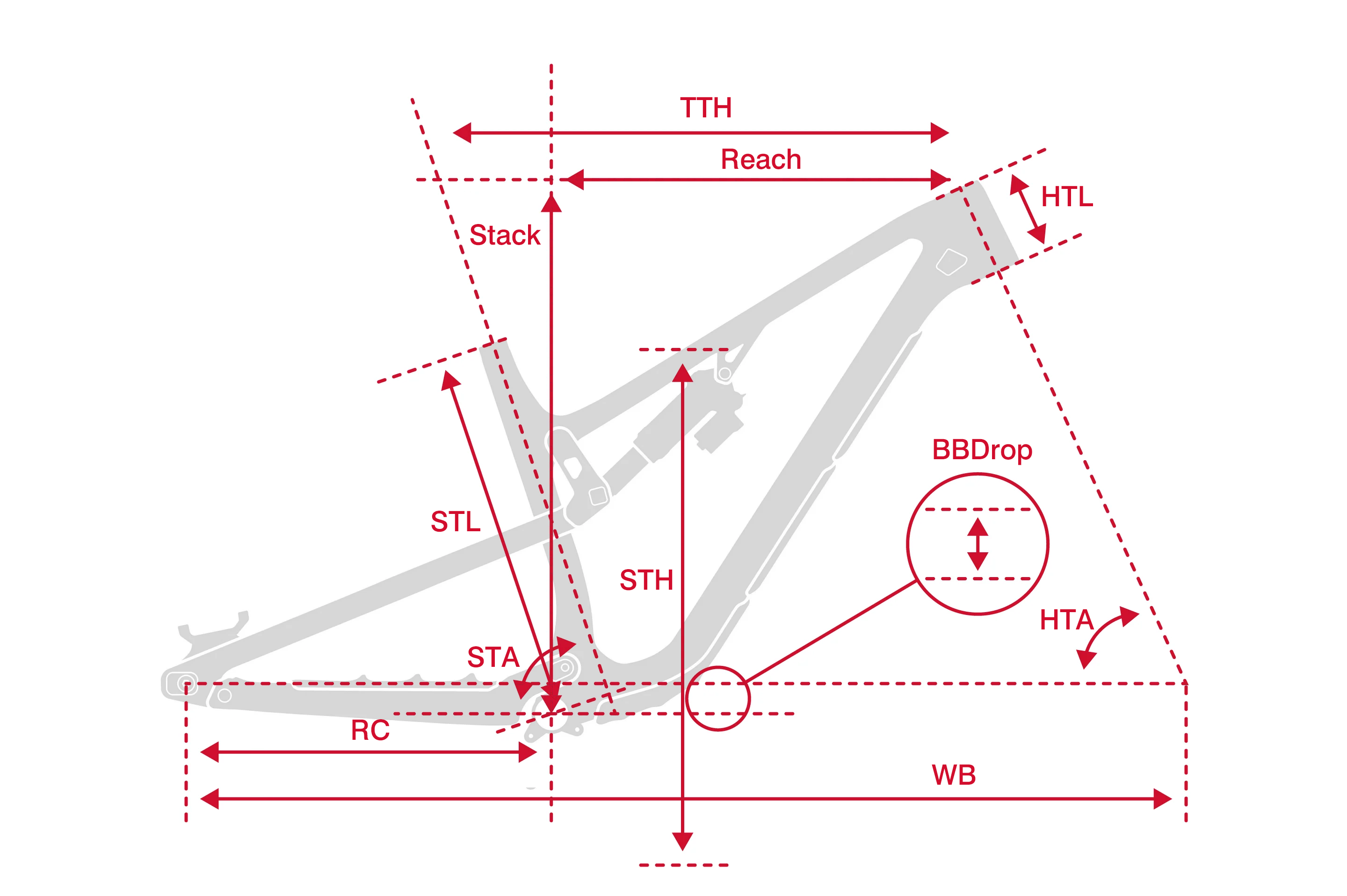

| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 583 | 609 | 638 |
| Head Tube Angle (deg) | 65 | 65.1 | 65.1 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 76 | 76.1 | 76.1 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 438 - 449 | 438 - 449 | 438 - 449 |
| Bottom Bracket Drop (mm) | 45 | 43 | 43 |
| Reach (mm) | 430 | 456 | 481 |
| Stack (mm) | 615 | 619 | 633 |
| Standover Height (mm) | 742 | 798 | 798 |
| Wheelbase (mm) | 1182 | 1210 | 1241 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 583 | 609 | 637 |
| Head Tube Angle (deg) | 65.2 | 65.3 | 65.3 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 76.2 | 76.3 | 76.3 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 438 - 449 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 42 | 41 | 41 |
| Reach (mm) | 433 | 458 | 483 |
| Stack (mm) | 614 | 618 | 631 |
| Standover Height (mm) | 744 | 799 | 799 |
| Wheelbase (mm) | 1182 | 1209 | 1241 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 582 | 608 | 637 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 |
| Stack (mm) | 612 | 616 | 629 |
| Standover Height (mm) | 745 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 582 | 608 | 637 |
| Head Tube Angle (deg) | 65.4 | 65.5 | 65.5 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 76.4 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 39 | 39 | 39 |
| Reach (mm) | 435 | 460 | 485 |
| Stack (mm) | 612 | 616 | 630 |
| Standover Height (mm) | 746 | 800 | 800 |
| Wheelbase (mm) | 1182 | 1209 | 1241 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 582 | 608 | 636 |
| Head Tube Angle (deg) | 65.7 | 65.7 | 65.7 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 76.7 | 76.7 | 76.7 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 37 | 36 | 36 |
| Reach (mm) | 437 | 462 | 487 |
| Stack (mm) | 611 | 615 | 628 |
| Standover Height (mm) | 749 | 801 | 801 |
| Wheelbase (mm) | 1182 | 1209 | 1240 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 581 | 607 | 636 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 33 | 33 |
| Reach (mm) | 439 | 464 | 489 |
| Stack (mm) | 609 | 613 | 627 |
| Standover Height (mm) | 750 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 581 | 608 | 636 |
| Head Tube Angle (deg) | 65.8 | 65.8 | 65.8 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 76.8 | 76.8 | 76.8 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 437 - 448 | 437 - 448 | 437 - 448 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 |
| Reach (mm) | 439 | 464 | 489 |
| Stack (mm) | 609 | 614 | 627 |
| Standover Height (mm) | 751 | 802 | 802 |
| Wheelbase (mm) | 1182 | 1209 | 1240 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 581 | 607 | 635 |
| Head Tube Angle (deg) | 66.1 | 66 | 66 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 77.1 | 77 | 77 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 31 | 31 | 31 |
| Reach (mm) | 441 | 466 | 491 |
| Stack (mm) | 608 | 612 | 625 |
| Standover Height (mm) | 754 | 803 | 803 |
| Wheelbase (mm) | 1182 | 1209 | 1240 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
| SM [29"] | MD [29"] | LG [29"] | |
| Top Tube Horizontal (mm) | 580 | 607 | 635 |
| Head Tube Angle (deg) | 66.3 | 66.2 | 66.2 |
| Head Tube Length (mm) | 90 | 95 | 110 |
| Seat Tube Angle (deg) | 77.3 | 77.2 | 77.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 436 - 447 | 436 - 447 | 436 - 447 |
| Bottom Bracket Drop (mm) | 28 | 28 | 28 |
| Reach (mm) | 444 | 468 | 493 |
| Stack (mm) | 606 | 610 | 624 |
| Standover Height (mm) | 756 | 804 | 804 |
| Wheelbase (mm) | 1181 | 1208 | 1240 |
| Sizing & Fit (身長 cm) | 155~ 167.5 | 167.5~ 177.5 | 175~ 188 |
Standover height is measured 200 mm in front of the bottom bracket.
