SIZE:SM[700c] / MD[700c]
¥299,200(税込)
アスファルトからグラベルまで、どんな道でも走れるオールラウンダーのアドベンチャーバイクです。コストパフォーマンスとメンテナンス性に優れたスペックでまとめました。毎日の通勤から週末の冒険まで、あなたの欲張りな走りに対応します。
Frame | Rocky Mountain Butted 6061 SL Series Alloy | BB386 EVO | 12x142mm Axle | Flat Mount Disc | 700x40c & 650bx2.2 Compatible | Dropper Post Compatible | Fender Mounts Rear Triangle |
---|---|
Fork | Rocky Mountain Carbon Gravel | Full Carbon Steerer |100 x 12mm Axle |3 Pack & Fender Mounts |
Headset | Rocky Mountain | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Stem | Rocky Mountain 31.8 XC | 7° Rise | XS = 60mm | SM = 70mm | MD = 80mm |LG = 90mm | XL = 100mm |
Handlebar | Rocky Mountain | Reach 70mm | Drop 120mm | Flare 18° | Width: 420mm XS | 440mm SM-MD | 460mm LG-XL |
Grips | Rocky Mountain Gel Bar Tape |
Brakes | TRP Spyre | Resin Pads | F:TRP 160mm | R:TRP 160mm |
Shifters | Sram Apex |
Rear Derailleur | Sram Apex 1 |
Cranks & Chainring | FSA Omega AGX+ | 40T |19mm Spindle | XS-SM = 170mm | MD = 172.5mm Crank Length | LG-XL = 175mm Crank Length |
Bottom Bracket | FSA BB386 |
Cassette | Sram PG-1130 11-42T |
Chain | KMC X11-1 |
Front Hub | Shimano Tiagra | 12x100mm |
Rear Hub | Shimano Tiagra | 12x142mm |
Rims | 2.0 Stainless |
Spokes | WTB ST i23 TCS Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
Tires | F: Kenda Piedmont 700 x 40 // R: Kenda Piedmont 700 x 40 |
Seatpost | Rocky Mountain 27.2mm |
Saddle | WTB Volt 142 |
Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
Notes | 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。 |

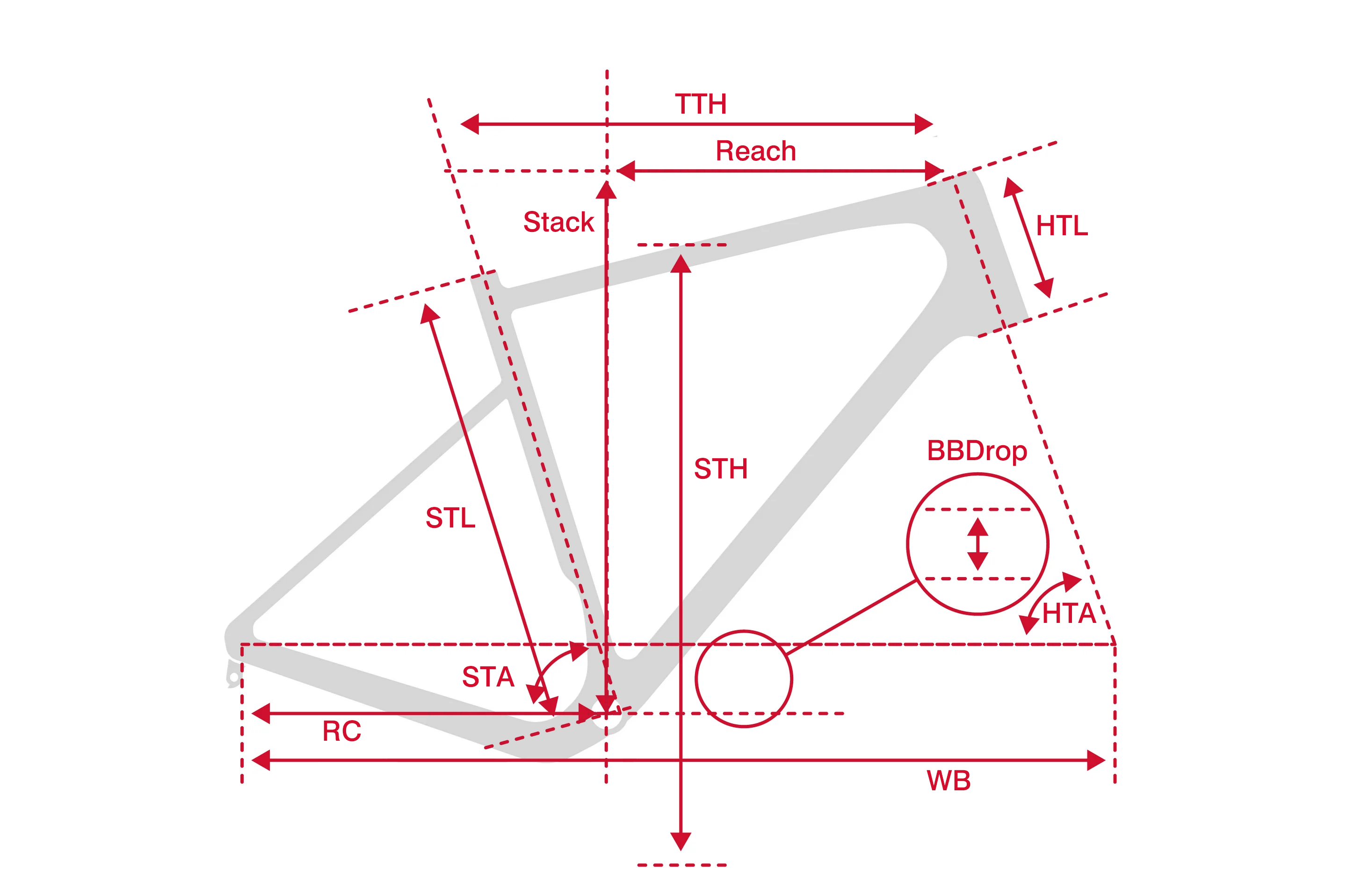

SM | MD | |
Top Tube Horizontal (mm) | 540 | 560 |
Head Tube Angle (deg) | 70.5 | 71 |
Head Tube Length (mm) | 130 | 150 |
Seat Tube Angle (deg) | 74.5 | 74 |
Seat Tube Length (mm) | 452 | 490 |
Rear Centre (mm) | 425 | 425 |
Bottom Bracket Drop (mm) | 77 | 75 |
Reach (mm) | 382.66 | 391.9 |
Stack (mm) | 567.4 | 586.2 |
Standover Height (mm) | 787 | 814 |
Wheelbase (mm) | 1034 | 1045 |
Sizing Chart (cm) | 157.5~ 170 | 167.5~ 177.5 |
