BROWN/GREY
SIZE:SM[29"] / MD[29"] / LG[29"]
¥297,000(税込)★

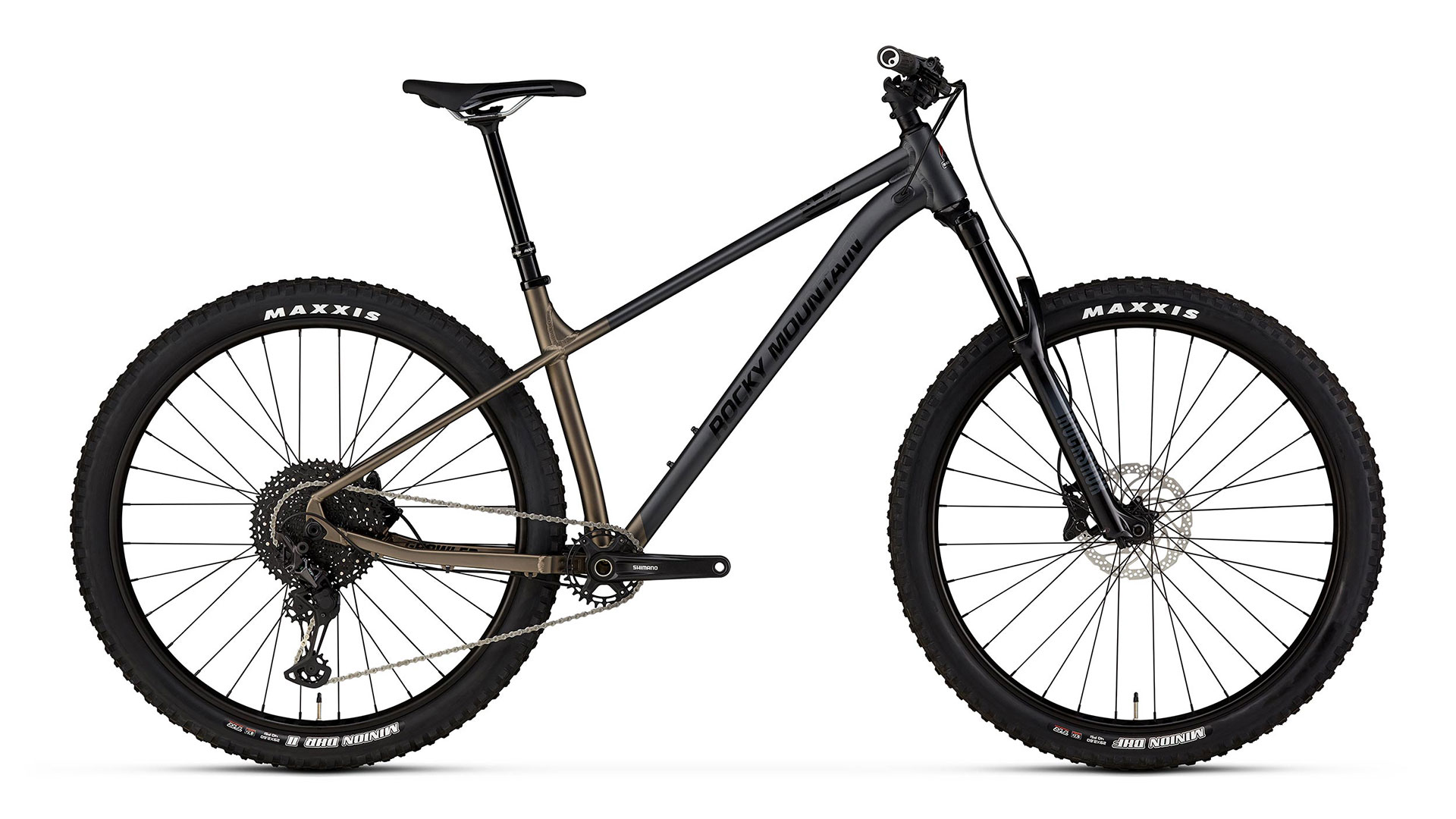

抜群の走破性と高い安定感を生む29×2.6インチワイドトレイルタイヤと、下りを楽しくさせる長いリーチと寝かせたヘッドアングルのジオメトリーを採用したトレイルバイクです。150mmストロークのフロントフォークと、高いグリップ力を発揮する太いタイヤがしっかりと路面をつかみ荒れた路面の下りやトラクションかかりづらいクライミングセクションも難なくこなします。
| Frame | Rocky Mountain 6061 Alloy | Threaded BB | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible. Rear Triangle |
|---|---|
| Fork | RockShox 35 Gold RL 150mm 44mm Offset |
| Front Travel | 150 |
| Headset | Rocky Mountain | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m |
| Handlebar | Rocky Mountain AM | 800mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Grips | Ergon GE10 EVO Lock On |
| Brakes | Shimano MT4120 4 Piston | Resin Pads | F:Shimano RT30 180mm | R:Shimano RT30 180mm |
| Shifters | Shimano SLX |
| Rear Derailleur | Shimano XT |
| Cranks & Chainring | Rocky Mountain Microdrive 2PC | 30T |Direct Mount| 24mm Spindle | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm |
| Bottom Bracket | Rocky Mountain Sealed - Shimano Compatible |
| Cassette | SunRace CSMZ800 WA10 11-51T |
| Chain | Shimano M6100 |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | Rocky Mountain Sealed Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
| Tires | F: Maxxis Minion DHF 2.6 EXO Tubeless Ready // R: Maxxis Minion DHR II 2.6 EXO Tubeless Ready |
| Seatpost | Rocky Mountain Toonie Drop Alloy 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle | Rocky Mountain 148 Cromo |
| Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
| Notes | 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。 |

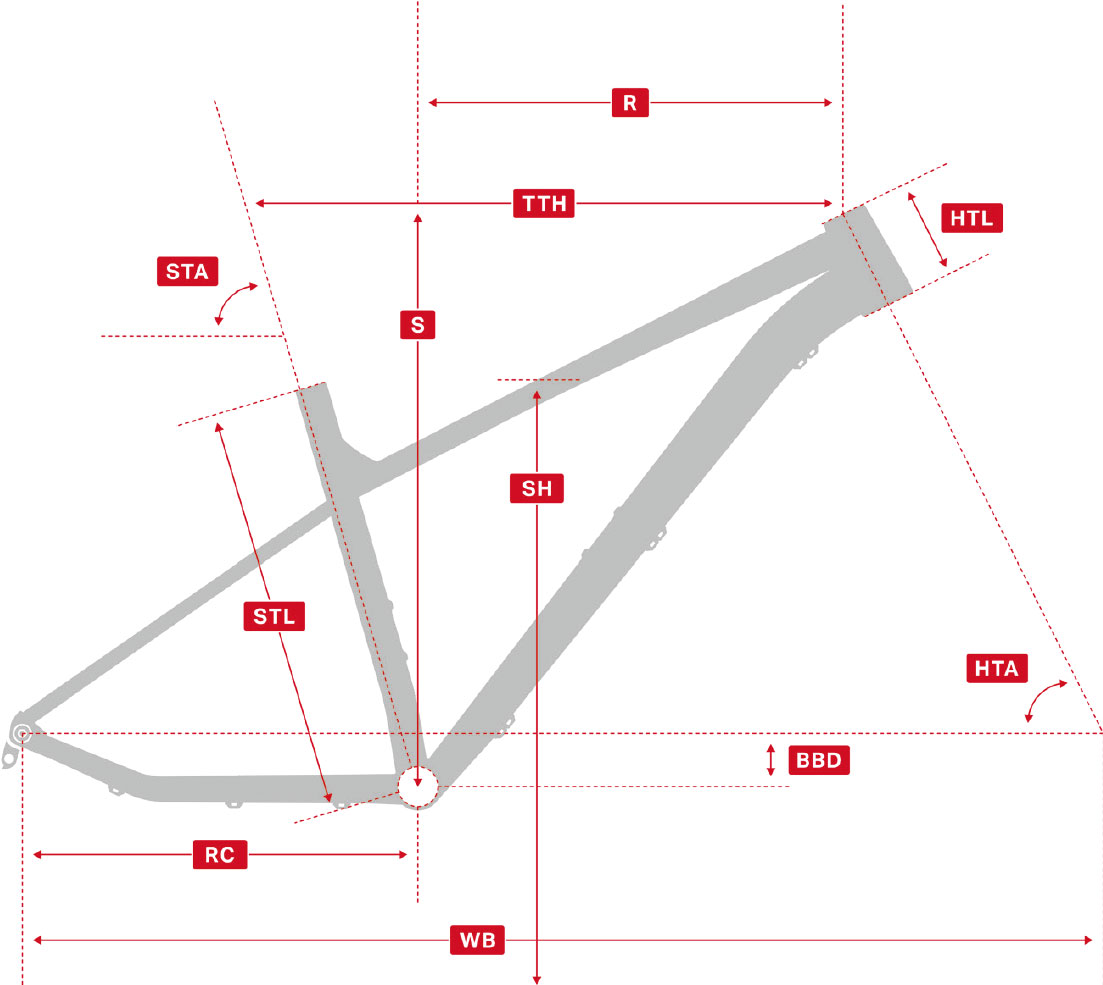

| SM | MD | LG | |
| Top Tube Horizontal (mm) | 593 | 620 | 647 |
| Head Tube Angle (deg) | 64 | 64 | 64 |
| Head Tube Length (mm) | 95 | 100 | 110 |
| Seat Tube Angle (deg) | 75 | 75 | 75 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 55 | 55 | 55 |
| Reach (mm) | 425 | 450 | 475 |
| Stack (mm) | 630 | 634 | 643 |
| Standover Height (mm) | 779 | 802 | 804 |
| Wheelbase (mm) | 1183 | 1210 | 1239 |
| Sizing Chart (cm) | 157.5~ 170 | 167.5~ 177.5 | 175~ 188 |
