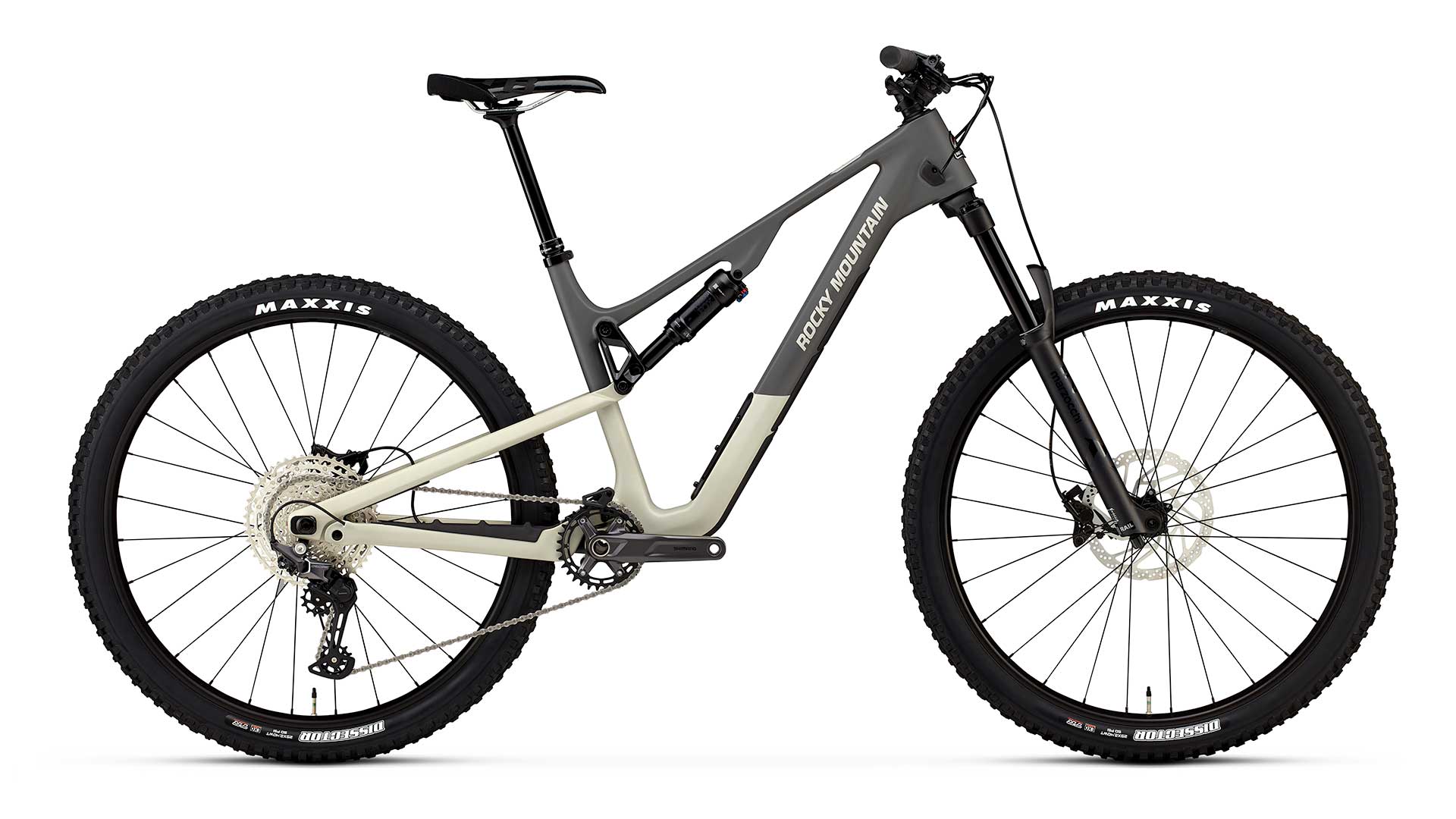

Instinct Carbon 30

SIZE:SM[29"] / MD[29"] / LG[29"]

¥574,200(税込)★

上りと下りの性能バランスに優れた、最も汎用性のあるトレイルバイクです。フロント150mm、リア140mmトラベルのサスペンションがどんなトレイルでもご機嫌にさせます。剛性を高めたフレーム、リーチアジャスタブルヘッドセット、ダウンチューブのストレージボックス、RIDE-4システムなど、考え抜かれたジオメトリーとフレーム機能を装備。トレイルライドに求められるパッケージを更に洗練させました。

SPECIFICATIONS

Frame	SMOOTHWALL™ Carbon \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing and Storage Compartment \| 2-Bolt ISCG05 Tabs \| RIDE-4™ Adjustable Geometry \| 2 Position Axle \| 140mm Travel \| SMOOTHWALL™ Carbon Rear Triangle
Fork	Marzocchi Z2 Float EVOL Rail 150mm \| 44mm Offset
Front Travel	150
Shock	Fox Float DPS Performance \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| XS . SM = 190x45mm \| MD . LG . XL = 210x52.5mm \| Size- Specific tune in FAQ
Rear Travel	140
Headset	FSA Orbit NO.85 Reach Adjust\| 0mm Cups Installed \| +/- 5mm Cups Included \| Sealed Stainless 36°x45° Bearings \| 30.2mm x 41mm x 7.1mm Upper \| 40mm x 51.8mm x 7.5mm Lower \| 1.5" Crown Race
Stem	Rocky Mountain 31.8 AM \| 5° Rise \| All Sizes = 40mm
Handlebar	Rocky Mountain AM \| 780mm Width \| 25mm Rise \| 9° Backsweep \| 5° Upsweep \| 31.8 Clamp
Grips	Rocky Mountain Lock On Light
Brakes	Shimano MT4120 4 Piston \| Resin Pads \| F:Shimano RT30 203mm \| R:Shimano RT30 180mm
Shifters	Shimano Deore 12spd
Rear Derailleur	Shimano Deore 12spd
Cranks & Chainring	Shimano Deore \| 32T \| 24mm Spindle \| Crankarm Length: XS . SM = 165mm \| MD . XL = 170mm
Bottom Bracket	Shimano SM-BBMT500
Cassette	Shimano Deore 10-51T 12spd
Chain	Shimano M6100
Front Hub	Shimano TC500 \| 15x110mm \| 28H
Rear Hub	Shimano TC500 Boost 148mm \| 28H
Spokes	2.0 Stainless
Rims	WTB ST i30 TCS 2.0 Tubeless \| 28H \| Tubeless Ready - Tape / Valves Incl
Tires	Maxxis Dissector 2.4 WT EXO Tubeless Ready
Seatpost	X Fusion Manic Composite 30.9mm \| XS = 125mm \| SM = 150mm \| MD = 170mm \| LG . XL = 200mm
Saddle	WTB Volt Race 142
Weight	14.57 KGS
Notes	商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。

GEOMETRY

RIDE-4 POSITION

POS.1 Slack
POS.2
POS.3
POS.4 Steep

RIDE-4とは？

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	572	621	640
Head Tube Angle (deg)	63.5	63.5	63.5
Head Tube Length (mm)	100	110	125
Seat Tube Angle (deg)	76.5	76.5	76.5
Seat Tube Length (mm)	365	410	440
Rear Centre (mm)	440 - 450	440 - 459	440 - 459
Bottom Bracket Drop (mm)	44	44	44
Reach (mm)	423	449	474
Stack (mm)	572	599	628
Standover Height (mm)	760	798	796
Wheelbase (mm)	1198	1227	1259
Sizing & Fit (身長 cm)	152.5~ 167	162.5~ 177.5	172.5~ 188

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	572	622	638
Head Tube Angle (deg)	63.7	63.7	63.7
Head Tube Length (mm)	100	110	125
Seat Tube Angle (deg)	76.7	76.7	76.7
Seat Tube Length (mm)	365	410	440
Rear Centre (mm)	440 - 450	440 - 450	440 - 450
Bottom Bracket Drop (mm)	40	40	40
Reach (mm)	427	452	477
Stack (mm)	572	599	628
Standover Height (mm)	762	799	798
Wheelbase (mm)	1198	1227	1259
Sizing & Fit (身長 cm)	152.5~ 167	162.5~ 177.5	172.5~ 188

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	572	622	636
Head Tube Angle (deg)	64	64	64
Head Tube Length (mm)	100	110	125
Seat Tube Angle (deg)	77	77	77
Seat Tube Length (mm)	365	410	440
Rear Centre (mm)	440 - 450	440 - 450	440 - 450
Bottom Bracket Drop (mm)	36	36	36
Reach (mm)	430	455	480
Stack (mm)	572	599	627
Standover Height (mm)	763	794	799
Wheelbase (mm)	1198	1227	1258
Sizing & Fit (身長 cm)	152.5~ 167	162.5~ 177.5	172.5~ 188

	SM [29"]	MD [29"]	LG [29"]
Top Tube Horizontal (mm)	571	623	634
Head Tube Angle (deg)	64.3	64.3	64.3
Head Tube Length (mm)	100	110	125
Seat Tube Angle (deg)	77.3	77.3	77.3
Seat Tube Length (mm)	365	410	440
Rear Centre (mm)	440 - 450	440 - 450	440 - 450
Bottom Bracket Drop (mm)	32	32	32
Reach (mm)	437	458	483
Stack (mm)	571	599	626
Standover Height (mm)	765	801	800
Wheelbase (mm)	1192	1227	1258
Sizing & Fit (身長 cm)	152.5~ 167	162.5~ 177.5	172.5~ 188

Standover height is measured 200 mm in front of the bottom bracket.
