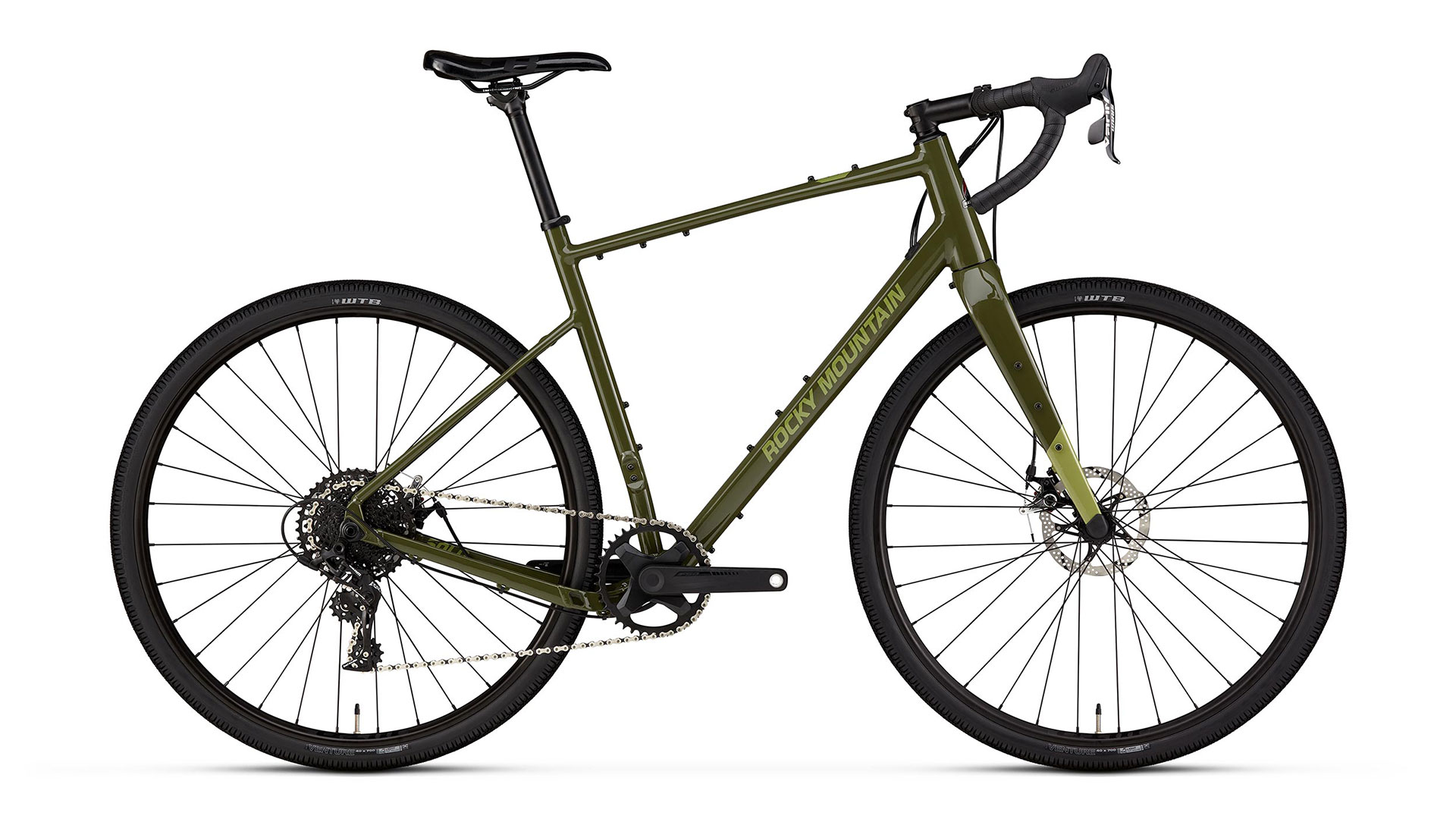

Solo Alloy 30

SIZE:SM[700c] / MD[700c]

¥259,600(税込)

アスファルトからグラベルまで、どんな道でも走れるオールラウンダーのアドベンチャーバイクです。コストパフォーマンスとメンテナンス性に優れたスペックでまとめました。毎日の通勤から週末の冒険まで、あなたの欲張りな走りに対応します。

SPECIFICATIONS

Frame Rocky Mountain Butted 6061 SL Series Alloy | BB386 EVO | 12x142mm Axle | Flat Mount Disc | 700x40c & 650bx2.2 Compatible | Dropper Post Compatible | Fender Mounts Rear Triangle
Fork Rocky Mountain Carbon Gravel | Full Carbon Steerer |100 x 12mm Axle |3 Pack & Fender Mounts
Headset Rocky Mountain | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem Rocky Mountain 31.8 XC | 7° Rise | XS = 60mm | SM = 70mm | MD = 80mm |LG = 90mm | XL = 100mm
Handlebar Rocky Mountain | Reach 70mm | Drop 120mm | Flare 18° | Width: 420mm XS | 440mm SM-MD | 460mm LG-XL
Grips Rocky Mountain Gel Bar Tape
Brakes TRP Spyre | Resin Pads | F:TRP 160mm | R:TRP 160mm
Shifters Sram Apex
Rear Derailleur Sram Apex 1
Cranks & Chainring FSA Omega AGX+ | 40T |19mm Spindle | XS-SM = 170mm | MD = 172.5mm Crank Length | LG-XL = 175mm Crank Length
Bottom Bracket FSA BB386
Cassette Sram PG-1130 11-42T
Chain KMC X11-1
Front Hub Shimano Tiagra | 12x100mm
Rear Hub Shimano Tiagra | 12x142mm
Rims 2.0 Stainless
Spokes WTB ST i23 TCS Tubeless | 32H | Tubeless Ready - Tape / Valves Incl
Tires F: Kenda Piedmont 700 x 40 // R: Kenda Piedmont 700 x 40
Seatpost Rocky Mountain 27.2mm
Saddle WTB Volt 142
Weight This information isn't available yet. We will update the weight of this model as soon as possible.
Notes 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。

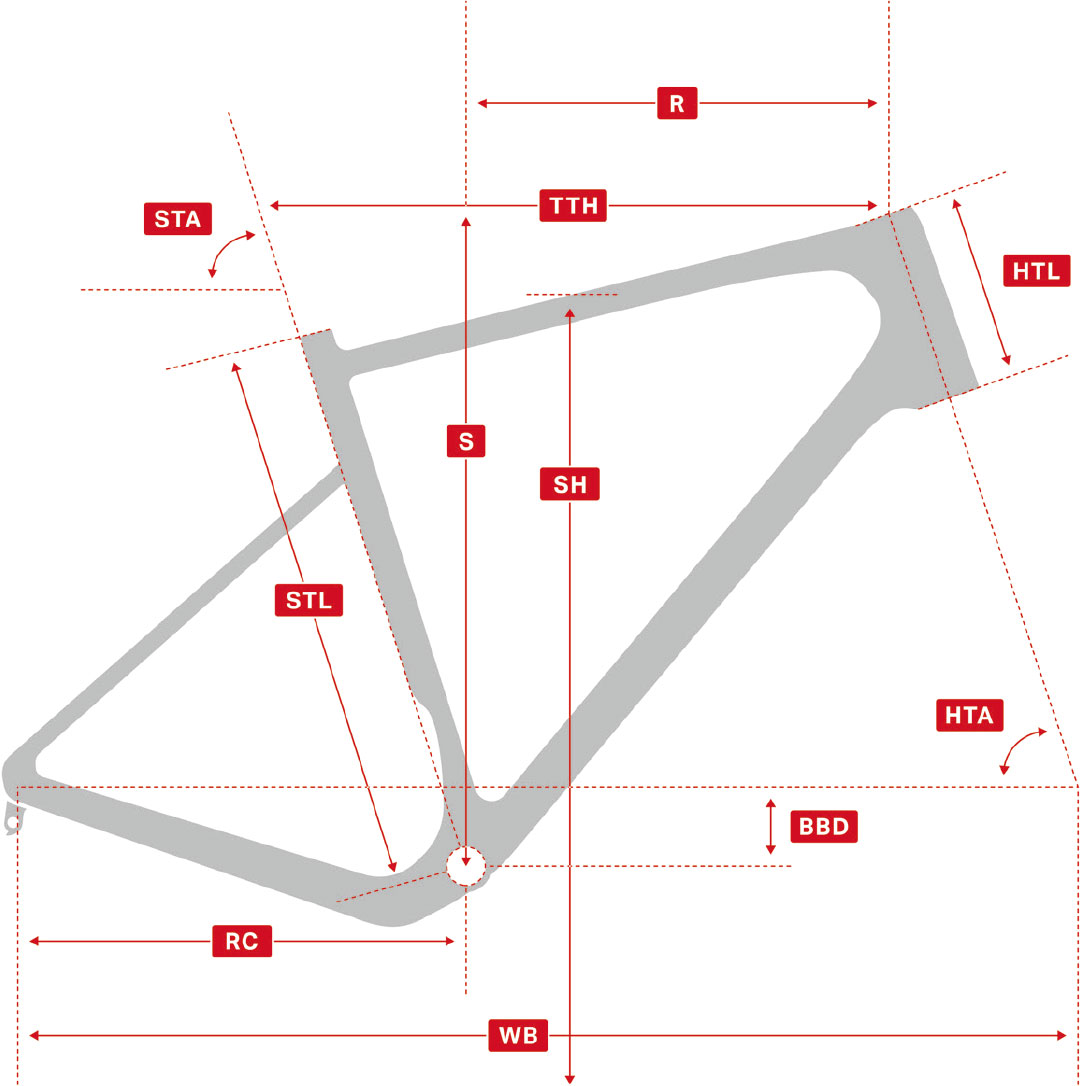

GEOMETRY

  SM MD
Top Tube Horizontal (mm) 540 560
Head Tube Angle (deg) 70.5 71
Head Tube Length (mm) 130 150
Seat Tube Angle (deg) 74.5 74
Seat Tube Length (mm) 452 490
Rear Centre (mm) 425 425
Bottom Bracket Drop (mm) 77 75
Reach (mm) 382.66 391.9
Stack (mm) 567.4 586.2
Standover Height (mm) 787 814
Wheelbase (mm) 1034 1045
Sizing Chart (cm) 157.5~ 170 167.5~ 177.5
geo image
