BLUE / YELLOW
RED / PINK
SIZE:SM[29"] / MD[29"] / LG[29"]
¥255,200(税込)
高い走破性と安定感を生む29×2.6インチワイドトレイルタイヤと、最新トレンドのより長いリーチと寝かせたヘッドアングルのジオメトリーを採用したトレイルバイクです 。ハードな下りやテクニカルなクライミングを今まで以上に楽しくさせます。ツボを押さえたパーツアッセンブルで、様々なトレイルをハードテイルで目一杯チャレンジをしたいライダーにおすすめです。
| Frame | Rocky Mountain 6061 Alloy | Threaded BB | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible |
|---|---|
| Fork | Suntour Raidon 34 LOR Air Boost 140mm |
| Front Travel | 140 |
| Headset | Rocky Mountain ZS44|56 | Loose Ball Bearings | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 800mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | Rocky Mountain Lock On Light |
| Brakes | Tektro HD-M280 | Shimano Pad Compatible |
| Shifters | Sram SX Eagle |
| Rear Derailleur | Sram SX Eagle |
| Cranks & Chainring | Sram SX Eagle Powerspline 30T |
| Bottom Bracket | Sram Powerspline |
| Cassette | Sram PG-1210 11-50T |
| Chain | Sram SX Eagle |
| Pedals | Alloy Platform |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | Rocky Mountain Sealed Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | Rocky Mountain TR30 Tubeless | 32H / Tubeless Compatible - Tape / Valves / Sealant Not Incl |
| Tires | F: Maxxis Minion DHF 2.6 EXO Tubeless Ready // R: Maxxis Minion DHR II 2.6 EXO Tubeless Ready |
| Seatpost | X Fusion Manic Alloy 30.9mm | SM = 125mm | MD = 150mm | LG = 170mm |
| Saddle | Rocky Mountain 148 Steel |
| Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
| Notes | 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。 |

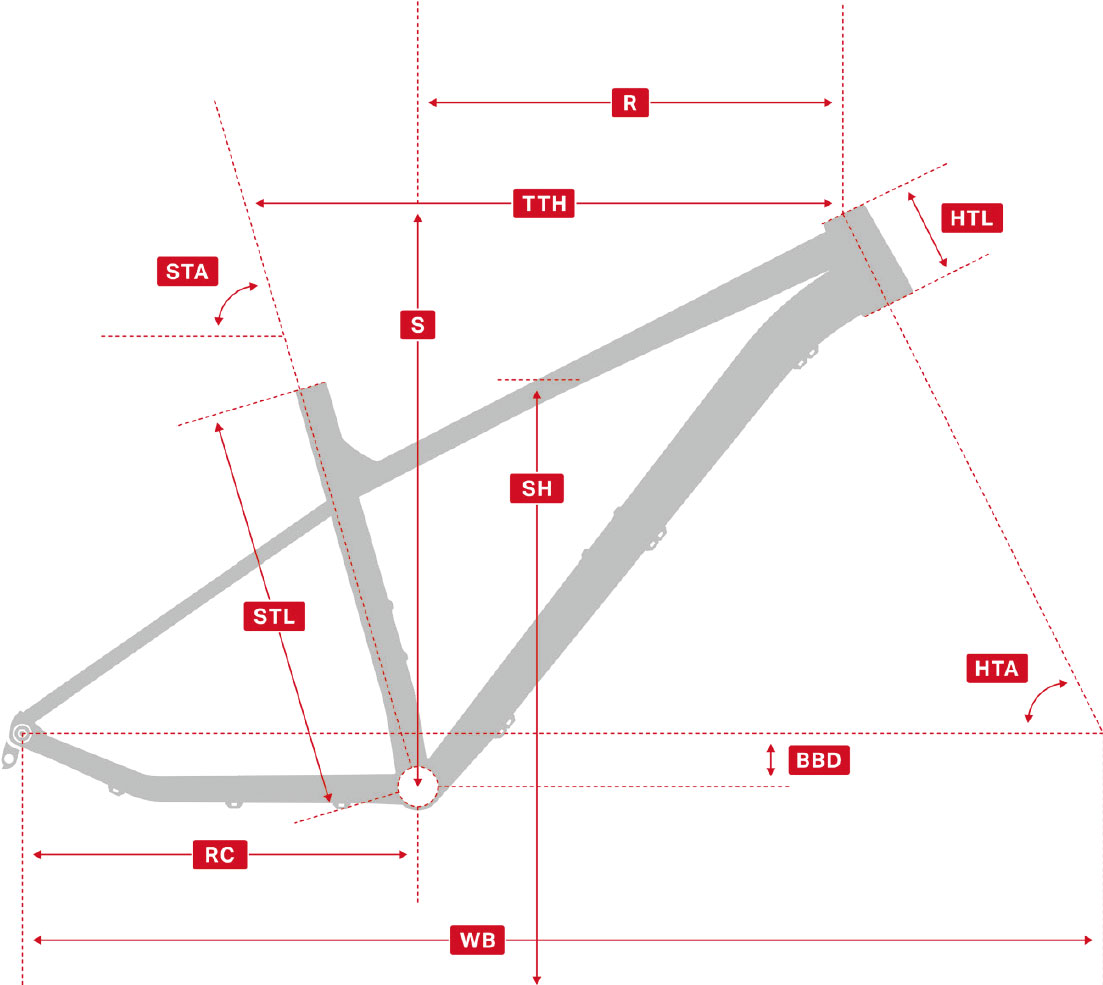

| SM | MD | LG | |
| Top Tube Horizontal (mm) | 593 | 620 | 647 |
| Head Tube Angle (deg) | 64 | 64 | 64 |
| Head Tube Length (mm) | 95 | 100 | 110 |
| Seat Tube Angle (deg) | 75 | 75 | 75 |
| Seat Tube Length (mm) | 380 | 420 | 445 |
| Rear Centre (mm) | 435 | 435 | 435 |
| Bottom Bracket Drop (mm) | 55 | 55 | 55 |
| Reach (mm) | 425 | 450 | 475 |
| Stack (mm) | 630 | 634 | 643 |
| Standover Height (mm) | 779 | 802 | 804 |
| Wheelbase (mm) | 1183 | 1210 | 1239 |
| Sizing Chart (cm) | 157.5~ 170 | 167.5~ 177.5 | 175~ 188 |
