Growler Jr 24

SIZE:One Size[24"]

¥133,100(税込)

高いグリップ力と安定感を生む24×2.6インチタイヤを備えた、ユースのためのトレイルバイクです。太いタイヤはテクニカルなセクションにも果敢にチャレンジできます。トレイルライドをアグレッシブに楽しみたいお子さんにピッタリです。

SPECIFICATIONS

Frame Rocky Mountain 6061 Alloy | Threaded BB | Tapered Zerostack Headtube | Dropper Post Compatible
Fork Suntour XCM30 80mm
Front Travel 80
Headset Rocky Mountain ZS44|56 | Loose Ball Bearings | 1-1/8" Crown Race
Stem Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 40mm
Handlebar Rocky Montain Jr | 640mm Width | 25mm rise | 9° Backsweep |5° Upsweep | 31.8 | For 19mm Grips
Grips SGD Slater JR Lock On
Brakes Tektro HD-M276 | Short Reach Lever | Shimano Pad Compatible
Shifters MicroShift Acolyte 8spd
Rear Derailleur MicroShift Advent With Clutch
Cranks " Chainring Rocky Mountain Microdrive 3PC | 28T | 76mm Asymmetrical BCD | Crank Length: 155mm
Bottom Bracket Sealed Cartridge Bearing
Cassette MicroShift CS-H083 12-42
Chain KMC Z8.3
Pedal Nylon Platform
Front Hub Rocky Mountain Boost 15mm
Rear Hub SRocky Mountain QR
Spokes 2.0 Stainless
Rims Rocky Mountain JR30 Tubeless | 32H / Tubeless Compatible . Tape / Valves / Sealant Not Incl
Tires F: Kenda Kadre 24 x 2.6 // R: Kenda Kadre 24 x 2.6
Seatpost Rocky Mountain Pivotal 30.9mm
Saddle Rocky Mountain Pivotal
Weight This information isn't available yet. We will update the weight of this model as soon as possible.
Notes 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。

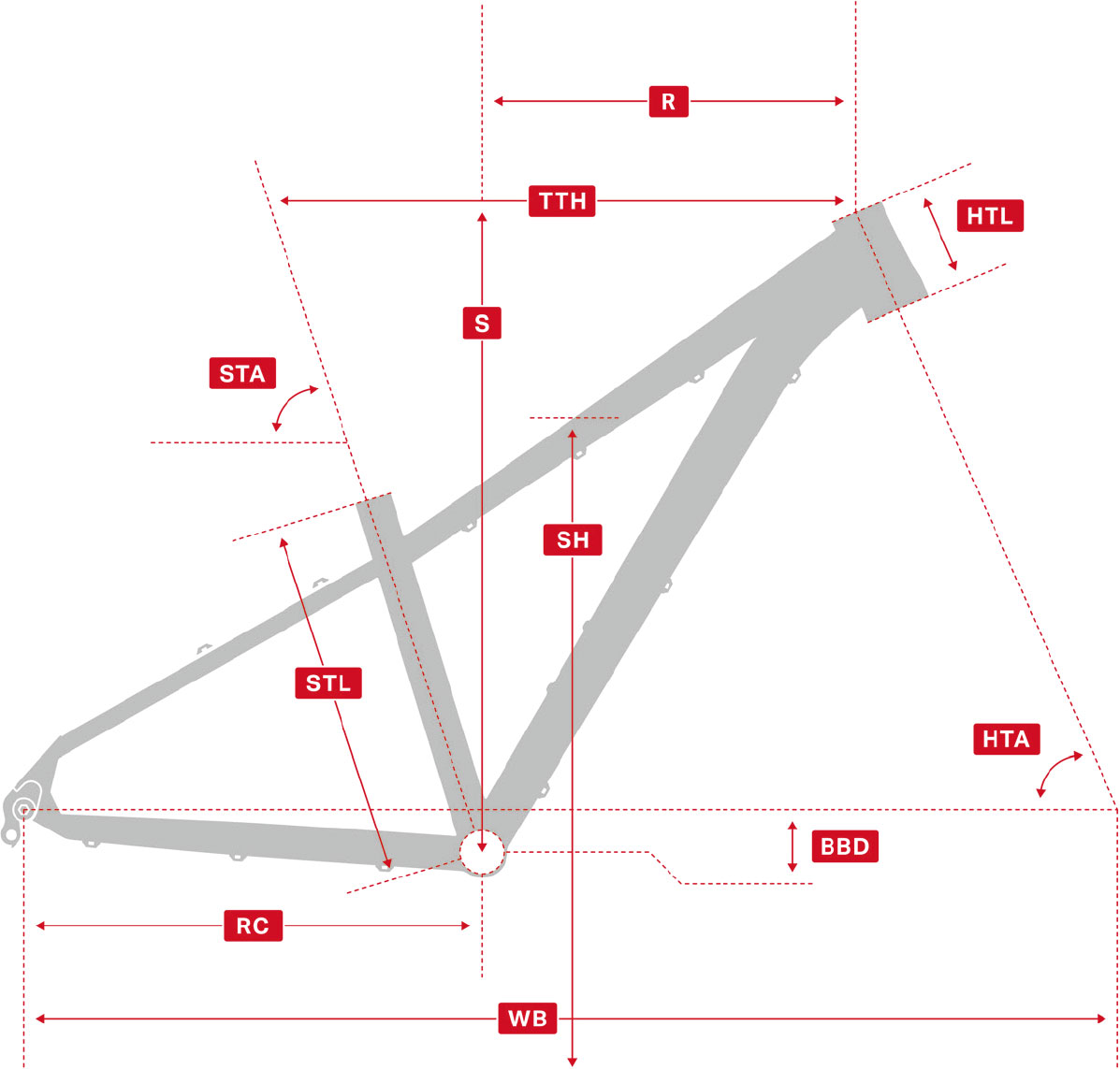

GEOMETRY

  kids
Top Tube Horizontal (mm) 520
Head Tube Angle (deg) 66
Head Tube Length (mm) 80
Seat Tube Angle (deg) 73
Seat Tube Length (mm) 300
Rear Centre (mm) 410
Bottom Bracket Drop (mm) 40
Reach (mm) 361
Stack (mm) 519
Standover Height (mm) 695
Wheelbase (mm) 1026
ジオメトリ表イメージ
