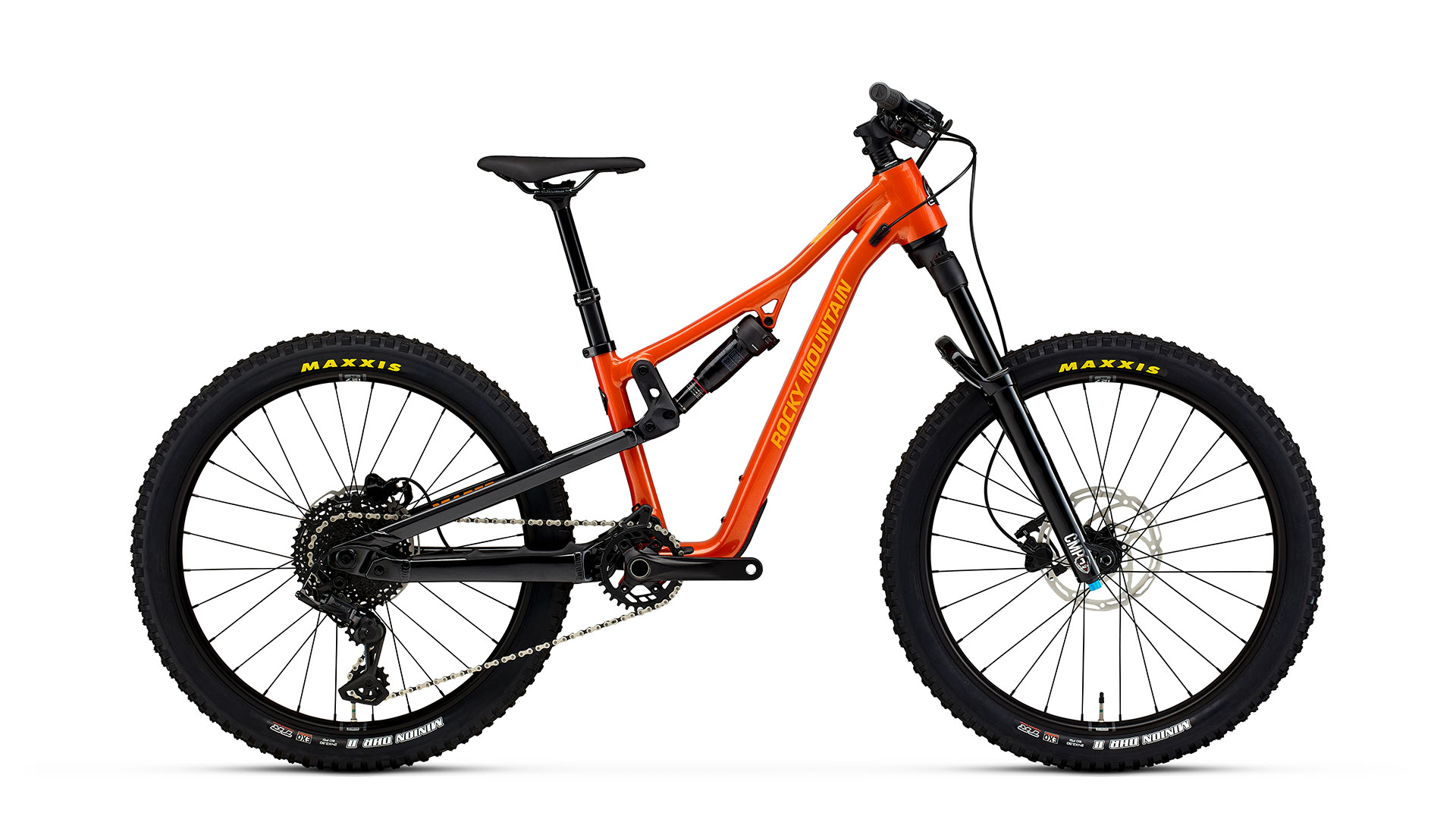

ORANGE / GREY
SIZE:One Size[24"]
¥360,000(税別)★
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-2™ Adjustable Geometry | 130mm Travel |
|---|---|
| Fork | Manitou JUNIT 34 Comp 120mm | 24" = 41mm Offset |
| R / Shock | RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | 190x45mm |
| Headset | FSA ZS56/66 Reach Adjust | 5mm Cups Installed | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain Jr | 640mm Width |25mm rise | 9° Backsweep |5° Upsweep | 31.8 | For 19mm Grips |
| Grips | SDG Slater JR Lock On |
| Brakes | F:Tektro HD-J2820 | Short Reach Lever | Shimano Pad Compatible // R:Tektro HD-J2820 | Short Reach Lever | Shimano Pad Compatible |
| Rotors | Tektro 180mm | Tektro 180mm |
| Shifters | MicroShift Advent X 10spd |
| R / Derailleur | MicroShift Advent X 10spd With Clutch |
| Crankset | Rocky Mountain Microdrive 2PC | 28T | 104mm Asymmetrical BCD | 24mm Spindle | Crank Length = 140mm |
| Cassette | Sunrace CSMS2 11-42T |
| Chain | KMC X10-1 |
| F / Hub | Shimano TC500 | 15mm Boost |
| R / Hub | Shimano TC500 Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | F:WTB KOM Team i30 TCS 2.0 | 28H // R:WTB KOM Team i30 TCS 2.0 | 28H |
| Tires | F:Maxxis Minion DHF 2.4 EXO Tubeless Ready // R:Maxxis Minion DHR II 2.3 EXO Tubeless Ready |
| Seatpost | Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp Lever | 30.9mm | 100mm |
| Saddle | Rocky Mountain Kids |
| Notes | 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。 |
| 24" | |
| Top Tube Horizontal (mm) | 478 |
| Head Tube Angle (deg) | 65.3 |
| Head Tube Length (mm) | 105 |
| Seat Tube Angle (deg) | 77.8 |
| Seat Tube Length (mm) | 315 |
| Rear Centre (mm) | 405 |
| Bottom Bracket Drop (mm) | 7 |
| Reach (mm) | 359 |
| Stack (mm) | 551 |
| Standover Height (mm) | 721 |
| Wheelbase (mm) | 1058 |
